1. The Multi-Cloud DR Mandate: Beyond Single-Cloud Redundancy

For modern enterprise organizations, relying on a single cloud service provider (CSP) for disaster recovery is no longer sufficient. While AWS and Azure both offer highly resilient multi-Availability Zone (AZ) and multi-region architectures, systemic platform-wide outages, global DNS failures, and regional fiber-optic cuts can still render an entire CSP's infrastructure unreachable. Furthermore, regulatory mandates—such as DORA in Europe and stringent financial compliance rules globally—increasingly require enterprises to demonstrate true operational portability and platform independence.

Designing disaster recovery across AWS and Azure presents a unique set of challenges. Unlike single-cloud DR, where you benefit from unified IAM, homogeneous networking, and native replication tools (such as AWS Elastic Disaster Recovery or Azure Site Recovery), cross-cloud DR requires bridging two fundamentally different control planes, networking topologies, and security paradigms. To build a successful cross-cloud DR strategy, you must first define your operational objectives with precision:

• Recovery Point Objective (RPO): The maximum acceptable age of data that must be recovered from storage for resume-of-operations. In cross-cloud environments, achieving a near-zero RPO is constrained by WAN latency and egress costs.

• Recovery Time Objective (RTO): The maximum tolerable duration of downtime before service is restored. Lowering RTO requires automated DNS routing, pre-provisioned warm compute resources, and automated runbooks.

• Network Latency Budget: The round-trip time (RTT) between your AWS primary region (e.g., us-east-1) and Azure secondary region (e.g., eastus). This latency directly impacts synchronous replication capabilities.

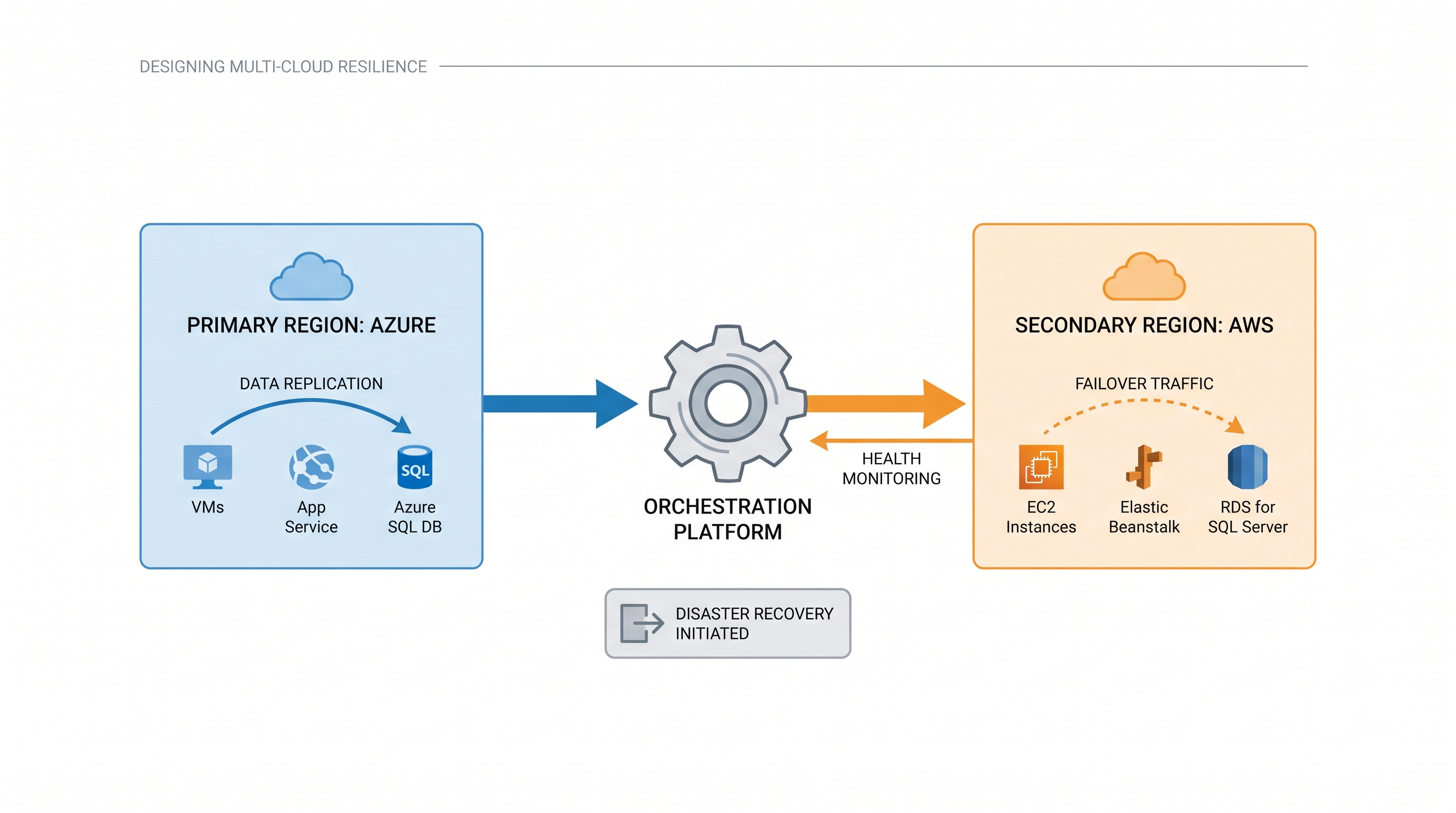

2. Architectural Archetypes for AWS-Azure Cross-Cloud DR

Choosing the right architectural pattern is a trade-off between deployment complexity, operational cost, and recovery speed. There are three primary patterns for cross-cloud disaster recovery:

Active-Passive (Cold Standby)

In a cold standby model, the primary application runs entirely on AWS (or Azure), while the target cloud contains only the infrastructure definitions (Terraform/OpenTofu) and database backups stored in object storage. Compute resources are spun up from scratch only when a failover is declared.

• RTO: 1 to 4 hours (limited by VM provisioning speed, network routing updates, and database restoration times).

• RPO: 1 to 24 hours (dependent on the frequency of cross-cloud database snapshot syncs).

• FinOps Profile: Extremely low idle cost. You pay only for storage and minimal configuration state.

Active-Passive (Warm Standby / Pilot Light)

The pilot light pattern maintains a minimal, continuously running footprint of core services in the secondary cloud. Databases are actively replicated asynchronously, and a minimal set of application servers (or container orchestrators) are kept alive to handle database synchronization and immediate health-check routing.

• RTO: 10 to 30 minutes.

• RPO: Seconds to minutes (due to continuous asynchronous database replication).

• FinOps Profile: Moderate cost. Requires continuous run-costs for database instances and minimal compute nodes, which must be carefully managed using a unified financial operations platform to prevent budget creep.

Active-Active (Multi-Site)

In an active-active setup, traffic is split across both AWS and Azure simultaneously. Applications must be designed to handle distributed state, eventual consistency, and cross-cloud database writes. This is the most complex architecture to implement but offers near-zero RTO.

• RTO: Near-zero (instantaneous failover via automated DNS routing).

• RPO: Near-zero to seconds (dependent on the distributed database engine configuration).

• FinOps Profile: Very high. You are paying for fully provisioned, production-grade infrastructure in both clouds, along with substantial cross-cloud data egress fees.

3. Networking & Traffic Routing: The Backbone of Cross-Cloud Failover

To orchestrate a seamless failover, you must establish a reliable, secure, and low-latency network path between AWS VPCs and Azure VNet environments. This network serves two primary purposes: continuous data replication during normal operations, and secure administrative routing during a failover event.

Establishing Secure Cross-Cloud Connectivity

Relying on the public internet for cross-cloud database replication exposes your traffic to latency spikes and security vulnerabilities. Instead, enterprise architectures leverage one of two models:

1. Private Interconnect via Cloud Exchange (Equinix Fabric / Megaport)

This is the gold standard for enterprise environments. By provisioning an AWS Direct Connect location and an Azure ExpressRoute circuit to a mutual colocation facility or Software-Defined Network (SDN) provider like Megaport, you bypass the public internet entirely. Traffic is routed over a dedicated, private layer-2 or layer-3 connection.

• Latency: Typically sub-10ms depending on geographic proximity (e.g., AWS us-east-1 to Azure East US in Northern Virginia).

• Security: Private routing with no public IP exposure.

• BGP Routing: Border Gateway Protocol (BGP) dynamically advertises routes between AWS VPCs and Azure VNets. You must carefully configure BGP route prioritization and AS-Path prepending to prevent asymmetric routing paths.

2. IPSec VPN over Public Internet with BGP

For organizations looking to optimize costs, a multi-tunnel IPSec VPN can be established between an AWS Virtual Private Gateway (VGW) / Transit Gateway (TGW) and an Azure VPN Gateway. To ensure high availability, you must configure active-active VPN tunnels with BGP dynamic routing enabled on both ends.

Global Traffic Management & DNS Failover

When a disaster is declared, client traffic must be immediately rerouted from AWS to Azure. This routing is managed via Global Server Load Balancing (GSLB) or advanced DNS routing. While AWS Route 53 and Azure Traffic Manager are excellent within their respective platforms, using an independent, cloud-agnostic DNS provider (such as Cloudflare, NS1, or Akamai) mitigates the risk of a single-provider DNS outage.

To configure automated DNS failover, you must implement strict health-check configurations:

• Time-to-Live (TTL): Set your DNS record TTLs to a low value (e.g., 10 to 30 seconds). High TTL values cause client web browsers and ISP resolvers to cache the old IP address, extending your actual RTO.

• Health Check Probes: Configure health check agents to probe an application endpoint from multiple geographic locations. The endpoint should verify database connectivity, disk space, and internal service health, rather than just returning a simple HTTP 200.

• Failover Routing Policy: Configure a primary-secondary routing policy. Under normal operations, 100% of traffic is routed to the AWS Application Load Balancer (ALB). If the health check fails, the DNS provider dynamically updates the CNAME or A records to point to the Azure Application Gateway.

4. Data Replication Strategies: Solving the Speed of Light Problem

Data replication is the most complex component of multi-cloud disaster recovery. Because data cannot travel faster than the speed of light, synchronous replication across clouds introduces significant write latency, which can severely degrade application performance. Therefore, most cross-cloud DR architectures rely on asynchronous replication, accepting a non-zero RPO.

Relational Database Replication (AWS Aurora to Azure DB for PostgreSQL)

If your primary database is AWS Aurora PostgreSQL, you cannot natively replicate it to Azure Database for PostgreSQL using standard AWS replication tools. Instead, you must use database-native replication technologies or third-party logical replication engines.

To implement logical replication for PostgreSQL:

1. Enable logical replication on your AWS Aurora cluster by setting the parameter rds.logical_replication = 1.

2. Create a replication slot on the primary AWS database.

3. Configure an Azure Database for PostgreSQL instance as a logical subscription worker.

4. Establish a secure connection over your private interconnect (ExpressRoute/Direct Connect) and initiate the subscription.

This setup allows continuous, low-latency asynchronous replication of transactional data. However, schema changes (DDL statements) are not automatically replicated via logical replication in older PostgreSQL versions. Your deployment pipelines must run DDL migrations against both databases simultaneously to avoid replication failure.

Object Storage Synchronization (AWS S3 to Azure Blob Storage)

Unstructured data stored in AWS S3 must be continuously synchronized to Azure Blob Storage. Since native cross-region replication cannot cross cloud boundaries, you must implement an event-driven replication pipeline or use specialized synchronization tools.

An elegant, serverless approach utilizes AWS S3 Event Notifications combined with AWS Lambda and Azure Functions:

• When an object is written to an AWS S3 bucket, it triggers an S3 Event Notification.

• The event is pushed to an AWS Simple Queue Service (SQS) queue.

• An AWS Lambda function consumes the queue, reads the object from S3, and writes it directly to the target Azure Blob Storage container using the Azure Storage SDK.

• To ensure absolute data integrity, write operations must include MD5 checksum verification on both ends.

For bulk initial syncs or high-throughput batch operations, utilizing command-line orchestration tools like AzCopy or rclone running on containerized workers is highly efficient. When designing these data pipelines, engineering teams must leverage specialized infrastructure and SRE solutions to automate error handling, retry logic, and queue dead-lettering.

5. Security & Identity Mapping: Bridging IAM and Entra ID

Maintaining a robust security posture during a cross-cloud failover is critical. Attackers frequently exploit the chaos of a disaster recovery event to target exposed systems. Your security policies, access controls, and encryption standards must be identical across both environments.

Identity Federation and Cross-Cloud Roles

Hardcoding static API keys or credentials for cross-cloud replication is a major security risk. Instead, establish trust relationships between AWS IAM and Microsoft Entra ID (formerly Azure Active Directory) using OpenID Connect (OIDC) or SAML 2.0.

For example, to allow an Azure-hosted replication worker to write to an AWS S3 bucket securely:

1. Configure Microsoft Entra ID as an OIDC Identity Provider (IdP) within AWS IAM.

2. Create an AWS IAM Role with a trust policy that permits the specific Azure Managed Identity or Service Principal to assume the role.

3. The Azure worker requests an OIDC token from Entra ID and exchanges it for temporary AWS security credentials using the AssumeRoleWithWebIdentity API call.

This approach eliminates the need for long-lived credentials, drastically reducing your attack surface. To manage these complex configurations and continuously monitor compliance, enterprises rely on an integrated cloud security management platform to detect security drift, identify misconfigured IAM trust policies, and ensure least-privilege access across both cloud provider ecosystems.

Encryption Key Management

Data must be encrypted at rest and in transit across both clouds. While AWS KMS and Azure Key Vault are proprietary, you can maintain control over your keys using Bring Your Own Key (BYOK) methodologies. By generating key material in an on-premises, FIPS 140-2 Level 3 Hardware Security Module (HSM), you can securely import the identical cryptographic key material into both AWS KMS and Azure Key Vault. This allows encrypted database backups or disk snapshots from one cloud to be decrypted and mounted in the other during a failover, provided the cryptographic algorithms match.

6. FinOps Optimization: Mitigating the Cost of Idle Multi-Cloud Infrastructure

The biggest barrier to implementing multi-cloud disaster recovery is cost. Running fully redundant production environments in both AWS and Azure doubles your compute, storage, and networking bills. To build a sustainable DR strategy, you must apply rigorous FinOps principles to your architectural design.

Right-Sizing the Standby Footprint

In a Warm Standby (Pilot Light) model, do not run your secondary Azure resources at production scale. If your AWS production cluster requires 32 nodes to handle peak traffic, your Azure standby cluster should be configured to run at the bare minimum required to maintain the cluster control plane (e.g., 2 or 3 nodes).

During a failover event, your automation scripts must dynamically scale the Azure cluster up to production capacity before DNS routing switches. This scale-up can be triggered automatically during the failover runbook execution.

Leveraging Spot and Low-Priority Instances

For non-database compute workloads in the secondary cloud, you can utilize AWS Spot Instances or Azure Spot Virtual Machines. Spot instances offer up to a 90% discount compared to on-demand pricing. While spot instances can be reclaimed by the provider with short notice, they are highly cost-effective for maintaining standby workers, batch processing, or non-critical microservices during the pre-failover phase.

Managing Data Egress Costs

Cloud providers charge significant fees for data leaving their network (egress fees). Continuous cross-cloud replication can quickly run up thousands of dollars in monthly egress charges. To optimize these costs:

• Enable Compression: Compress all data payloads before transmitting them across clouds.

• Use Private Connections: Data egress rates over AWS Direct Connect and Azure ExpressRoute are substantially cheaper than egress over the public internet (often 50% to 70% lower per gigabyte).

• Differential Syncs: Ensure that database and object storage synchronization pipelines only transmit delta changes (block-level modifications) rather than full object transfers.

To accurately forecast and control these cross-cloud expenses, financial and engineering leaders should implement multi-cloud budget forecasting tools. This ensures that the insurance policy of having a cross-cloud DR setup does not cost more than the business value of the uptime it guarantees.

7. Step-by-Step Runbook: Automating Failover with Infrastructure as Code

A disaster recovery plan is only as good as its automation. In the high-stress event of an actual outage, manual intervention leads to errors, extended downtime, and data corruption. You must define your entire cross-cloud infrastructure using Infrastructure as Code (IaC) and automate the failover execution path.

Example: Cross-Cloud DNS Failover Configuration with Terraform

The following Terraform configuration demonstrates how to set up an active-passive DNS routing policy using a cloud-agnostic DNS provider. This ensures traffic is dynamically routed to Azure if the AWS endpoint fails.

# Define the Primary AWS Endpoint
resource "cloudflare_record" "aws_primary" {
  zone_id = var.cloudflare_zone_id
  name    = "app"
  value   = var.aws_alb_dns_name
  type    = "CNAME"
  ttl     = 10
  proxied = true
}

# Define the Secondary Azure Endpoint
resource "cloudflare_record" "azure_secondary" {
  zone_id = var.cloudflare_zone_id
  name    = "app-backup"
  value   = var.azure_app_gateway_ip
  type    = "A"
  ttl     = 10
  proxied = true
}

# Configure the Health Monitor
resource "cloudflare_healthcheck" "http_health_check" {
  zone_id        = var.cloudflare_zone_id
  name           = "app-health-check"
  description    = "Monitor AWS Primary Application Health"
  address        = "app.yourdomain.com"
  suspended      = false
  check_regions  = ["US-East", "US-West", "EU-West"]
  type           = "HTTPS"
  port           = 443
  path           = "/healthz"
  method         = "GET"
  interval       = 60
  retries        = 3
  timeout        = 5
  expected_body  = "HEALTHY"
  expected_codes = ["200"]
}

The Automated Failover Sequence

When the health check fails, your automated orchestration pipeline must execute the following steps in sequence:

1. Quiesce Primary Operations: If AWS is partially responsive, immediately block incoming writes on the AWS side to prevent data drift (split-brain scenario).

2. Promote Secondary Database: Terminate logical replication on the Azure PostgreSQL database and promote it from a read-only subscription node to a standalone read-write master database.

3. Scale Standby Compute: Execute an Azure CLI or Terraform script to scale up the Azure Kubernetes Service (AKS) cluster or Virtual Machine Scale Sets to match production traffic demands.

4. Verify Data Integrity: Run automated smoke tests to ensure the promoted Azure database is consistent and accessible by the application layer.

5. Update DNS Routing: Trigger the GSLB or DNS provider to switch the active routing record from the AWS ALB to the Azure Application Gateway.

6. Notify Operations: Alert the SRE and Incident Management teams via Slack, PagerDuty, or MS Teams with full execution logs.

8. Continuous Verification: Chaos Engineering for Multi-Cloud DR

An untested disaster recovery plan is not a plan at all; it is a liability. Infrastructure configurations, database schemas, and application code change daily. Without continuous testing, your DR pipeline will fail when you need it most.

Implementing Chaos Engineering across cloud boundaries ensures your systems are resilient to unexpected failures. You should regularly schedule simulated outages:

• Simulate Network Partitioning: Temporarily disable your Direct Connect or ExpressRoute BGP sessions to verify that your replication queues hold data gracefully and catch up once connectivity is restored.

• Inject Latency: Use network emulation tools to inject synthetic latency between AWS and Azure, ensuring your application handle replication delays without crashing.

• Scheduled Failover Drills: Once per quarter, execute a full failover to Azure and run production operations there for a designated window (e.g., 4 hours) before executing a controlled failback to AWS.

To orchestrate these complex, continuous verification cycles without disrupting live users, operations teams utilize an advanced operational intelligence engine. This technology provides deep observability across both clouds during chaos injection, allowing you to instantly visualize performance bottlenecks, trace cross-cloud API latencies, and confirm that your automated failover runbooks execute precisely within your targeted RTO parameters.
